Machining of bone screws: Precision for safe fixation systems
The highest demands on material, processing and surface quality — for long-lasting and resilient bone screws.
Bone screws are essential fixation aids in modern medical technology and are used in reconstructive and traumatic surgery. They are usually made of titanium (Ti6Al4V ELI) or stainless steel (316LVM) and must have exact dimensional stability and optimum surface quality. Production is often carried out in series production with quantities between 30 and over 1000 units.
One particular challenge is the production of threads via whirling, which is crucial for secure anchoring.
Your benefits at a glance
- Highest stability and fixation — precision-made bone screws for secure anchoring
- Perfect thread quality and dimensional accuracy — precise machining for exact screw geometry
- Efficient series production and process reliability — optimised processing technologies for high quantities
Precise machining for long-lasting bone screws
Specialised manufacturing techniques provide the perfect geometry and surface finish required for safe integration into the body.
Bone screws consist of:
a. Tulip head: Allows connection to rods or plates and provides stable fixation in spinal surgery. Precision engineered for safe and resilient implantation.
b. Screw thread: Optimised thread geometry for maximum bone hold. Specially developed materials and coatings improve biocompatibility and reduce friction when screwing in.

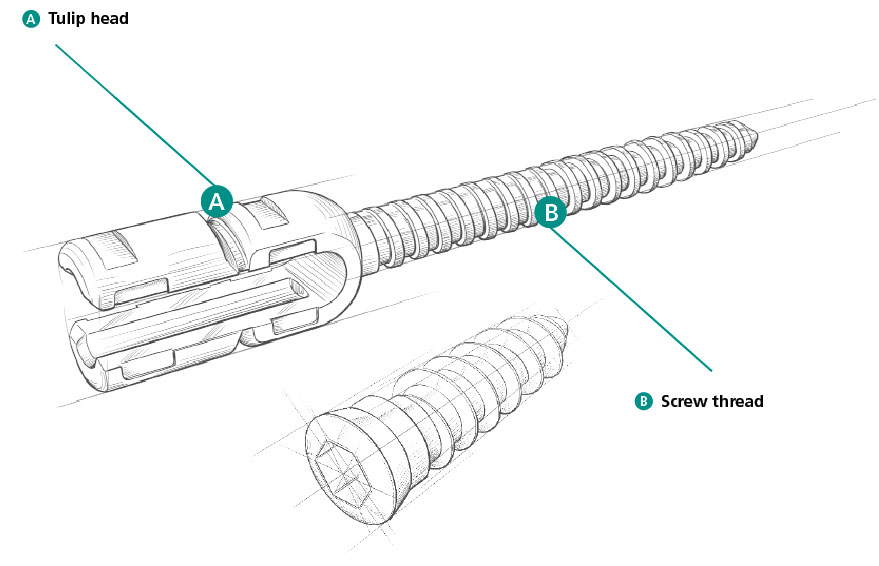

Bone screws with tulip head (A) and precision screw thread (B) for secure fixation and high stability.
Properties of the bone plates
- High-strength titanium alloys
Made of Ti6Al4V ELI or stainless steel for maximum stability and biocompatibility.
- Optimised thread geometry
Specially developed thread forms for secure hold and minimal bone damage.
- Precise production technology
High-precision turning and milling processes ensure precise fit and optimal implantation.
- Corrosion and wear resistance
Material coatings and special surface treatments ensure durability and mechanical resilience.

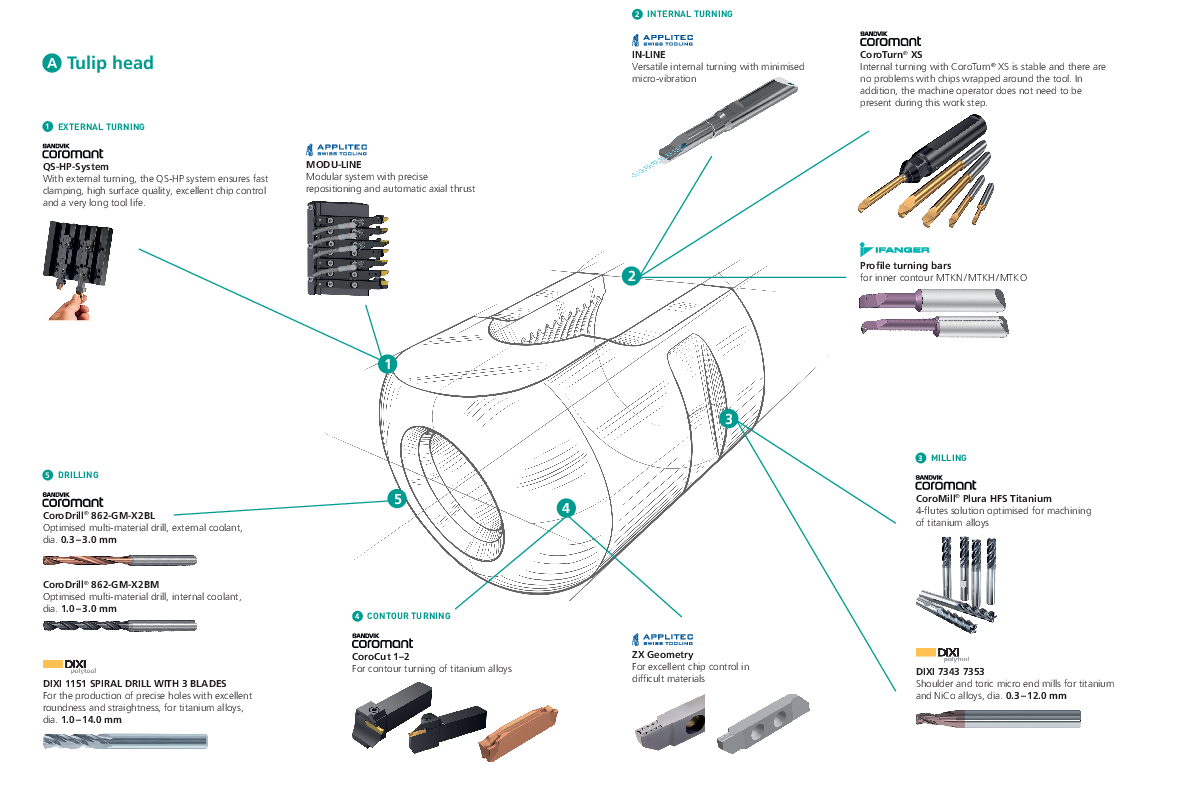

"Tulip head" machining
The Tulip head allows the connection of rods and screws for stable fixation. High-precision milling and turning techniques ensure precise geometries, optimum surface quality and reliable implant integration.
Production Technology – Solutions for the medical industry, page 38/39

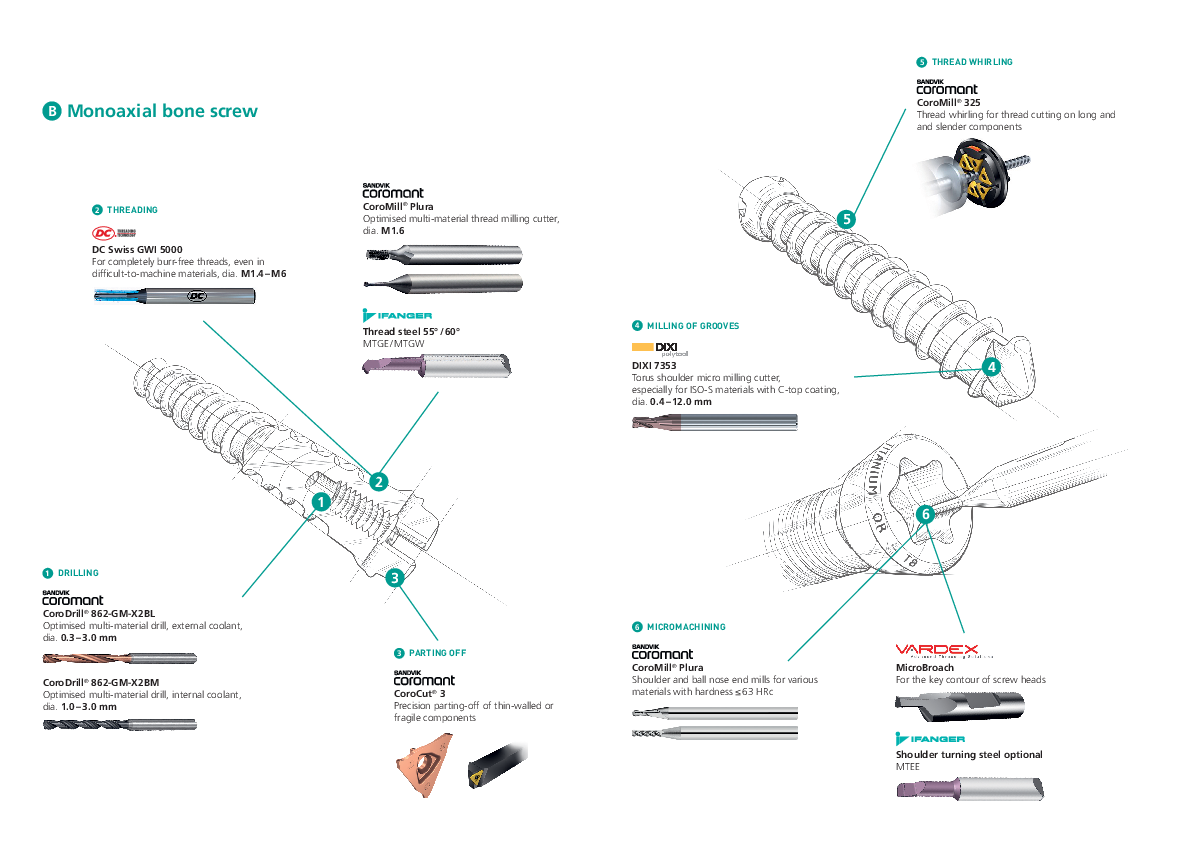

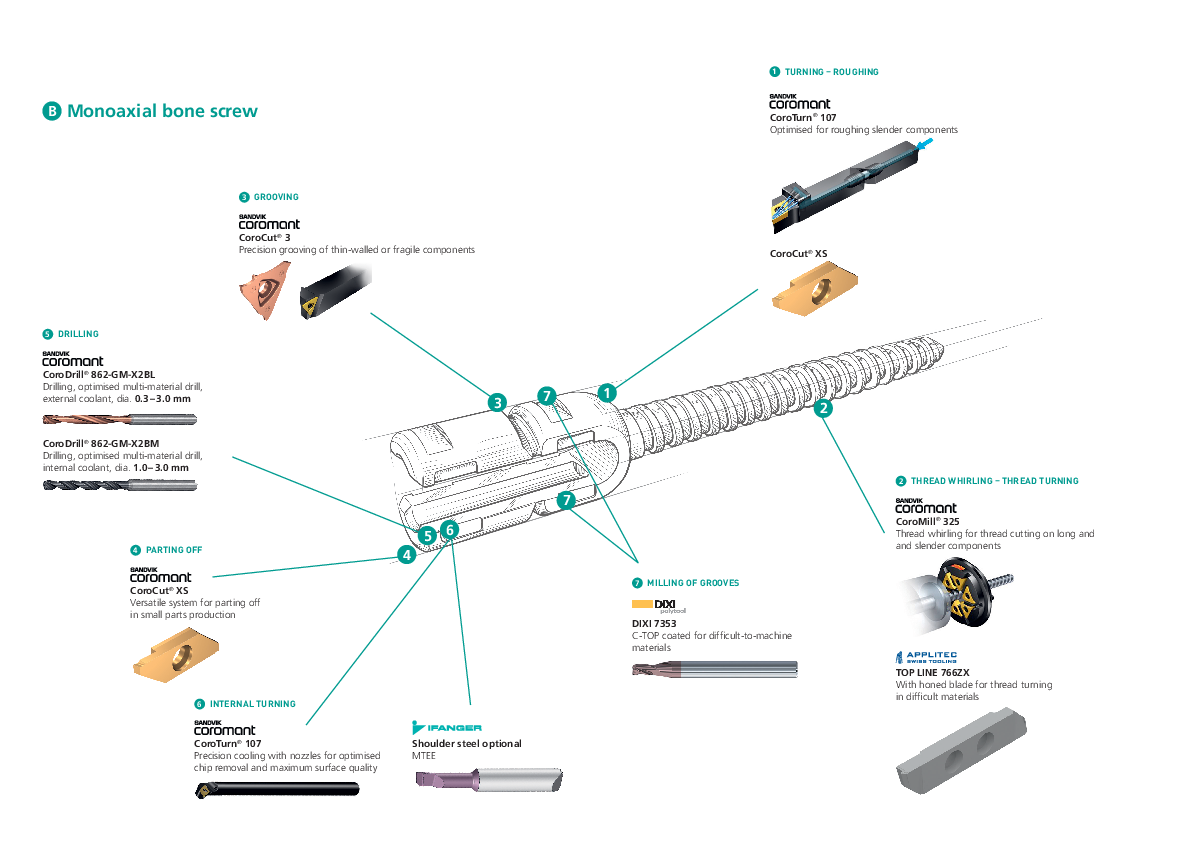

"Bone screw" machining
Specific turning and thread whirling processes for maximum precision
The bone screw provides stable fixation in bone surgery. High-precision milling, turning and threading techniques ensure precise geometries, optimised thread structures and reliable implantation.
Production Technology – Solutions for the medical industry, page 40/41 and 42/43
Download brochure
Production Technology – Solutions for the medical industry
Get a comprehensive insight into the latest solutions for the medical technology industry — from components to materials to machining technologies.
